Background

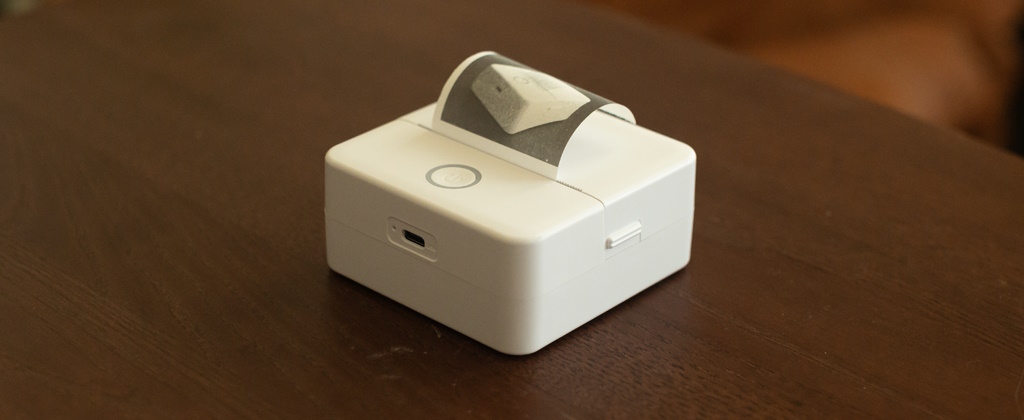

Recently I imported one of seemingly endless variants of the tiny “cat” thermal printers, mine actually lacking any feline theming. Depending on which variant you buy, you’re prompted to install one of a few dodgy Android/iOS clone apps (like iPrint or Tiny Print) to communicate with it over Bluetooth Low Energy.

Tinkering around in the app, the printer exposes a few interesting options that are hidden or missing in some of my more “professional” thermal printers, like setting the printhead energy, paper feed speed, and even 4-bit grayscale printing. Printing anything from my phone might be more convenient on the go, but for using it in the lab, desktop printing is a must.

There seem to be a number of scripts and sites that support these printers, like the very nice Cat-Printer Python library, and its web companion kitty-printer, but I wasn’t able to find one that exposes all the features of mine, or even prints with the same quality as the app.

The App

I found copies of the two most popular Android app APKs, so into JADX they go! Both apps are superficially different, but they’re identical at their BLE core. For those interested, a few interesting (and convoluted) classes contain most of the protocol:

• com.lib.blueUtils.BluetoothOrder has most of the hardcoded message definitions
• com.lib.blueUtils.BluetoothUtils deals with device-specific messages, like WiFi (if supported) and battery level statuses
• com.lib.blueUtils.PrintDataUtils implements the 1-bit and 4-bit grayscale image conversion and compression
• com.Utils.PrinterModel shows the various options available for each printer model supported by the app
• com.Utils.PrintModelUtils has all of the actual configurations available for each printer
  • see the appendix for the list as a CSV

I spent a few hours poking around and trying to trace the logic for my particular printer model (X6h, apparently distinct from X6H), but came up mostly empty-handed. I turned instead to just sniffing the BLE packets and cross-referencing them, which was much quicker.

Sniffing BLE

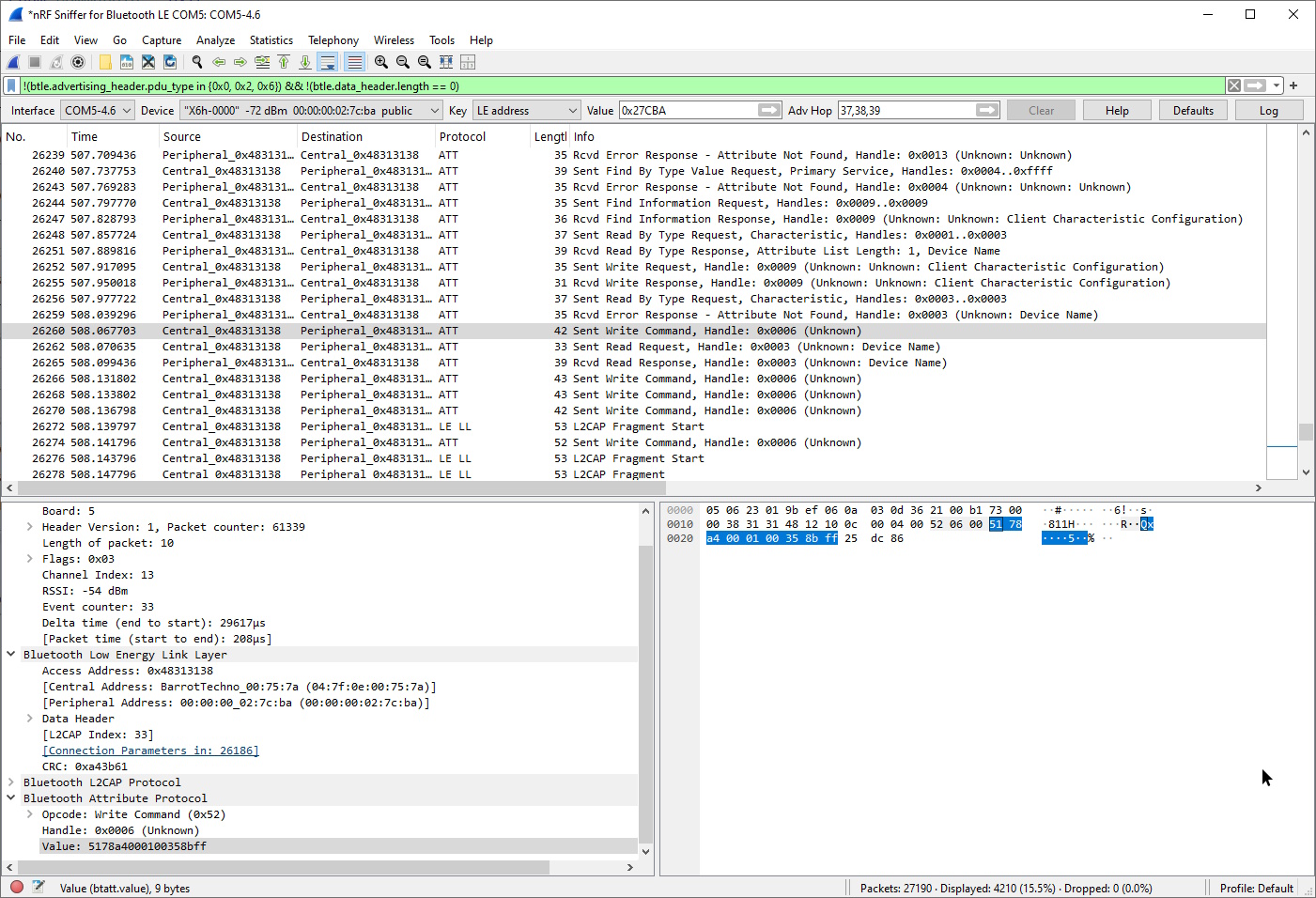

I used the Adafruit Bluefruit LE Friend BLE sniffer dongle, which is conveniently supported in Wireshark with a plugin from Nordic (archive.org link). After the devices have connected, we can see commands written to the printer’s characteristic:

A typical packet is shown as the write Value.

For my printer,

• Print service: 0000ae30-0000-1000-8000-00805f9b34fb
• Print write characteristic: 0000ae01-0000-1000-8000-00805f9b34fb
• Print read characteristic: 0000ae02-0000-1000-8000-00805f9b34fb

Packet Format

Cross-referencing the data with the information in the app, I gather that packets to and from this printer follow this format:

| 51 78 | A4 | 00 | 01 00 | 35 | 8B | FF |
  |       |    |    |       |    |    Always FF
  |       |    |    |       |    CRC8 checksum (payload only, 0x07 polynomial)
  |       |    |    |       Payload
  |       |    |    Payload length (LE U16)
  |       |    Message direction? (U8, 0: Host to Printer, 1: Printer to Host)
  |       Command ID (U8)
  Magic (LE U16, always 0x7851)

Most other printers use this same format, with some specific models prefixing the entire message with 0x12. However, some packets use an invalid hardcoded checksum, more on that later.

Commands

Print

The print command requires a hardcoded CRC: (Text, Gray 8) requires a CRC of 0x15, and (Text, Gray 16) requires 0x12, even though that is not their valid CRC.

Quality

Some printers instead use this mapping:

Device Status

When receiving, a payload of 0x10 indicates the RX buffer is full, and to stop sending data (5178AE0101001070FF). Conversely, the payload 0x00 indicates that data can be sent again (5178AE0101000000FF).

Compressed scanline data

When printing in binary or 4-bit grayscale modes, the printer supports receiving the image data as a series of bitmap scanlines compressed with LZO. The app uses the MiniLZO library for compression.

| EF BE | 34 12 | FF ...
  |       |       Compressed bitmap data
  |       Compressed bitmap size (LE U16)
  Uncompressed bitmap size (LE U16)

For 1bpp images, the leftmost pixel is the least-significant bit, and the 8th column of pixels is the most significant bit. For 4bpp images, the lower nibble is the leftmost column, and the upper nibble is the rightmost. Each scanline is compressed and sent separately for my printer as 48- and 192-byte scanlines, respectively, for my 384-column printhead. The printer seems to expect the first row to be completely zeroes (i.e. white) or else printing artifacts are introduced.

Printers with the “newCompress” flag set instead require zlib compression, which I haven’t tested.

Raw scanlines

For 1bpp images, the scanlines can be buffered directly without compression, using the same format as the compressed payload, albeit without compression applied and without the compression header (i.e. a raw 48-byte payload). Looking around online, some printers may require a Start Lattice (5178A6000B00AA551738445F5F5F44382CA1FF) and End Lattice (5178A6000B00AA5517000000000000001711FF) command surrounding this data, but mine apparently does not.

Results

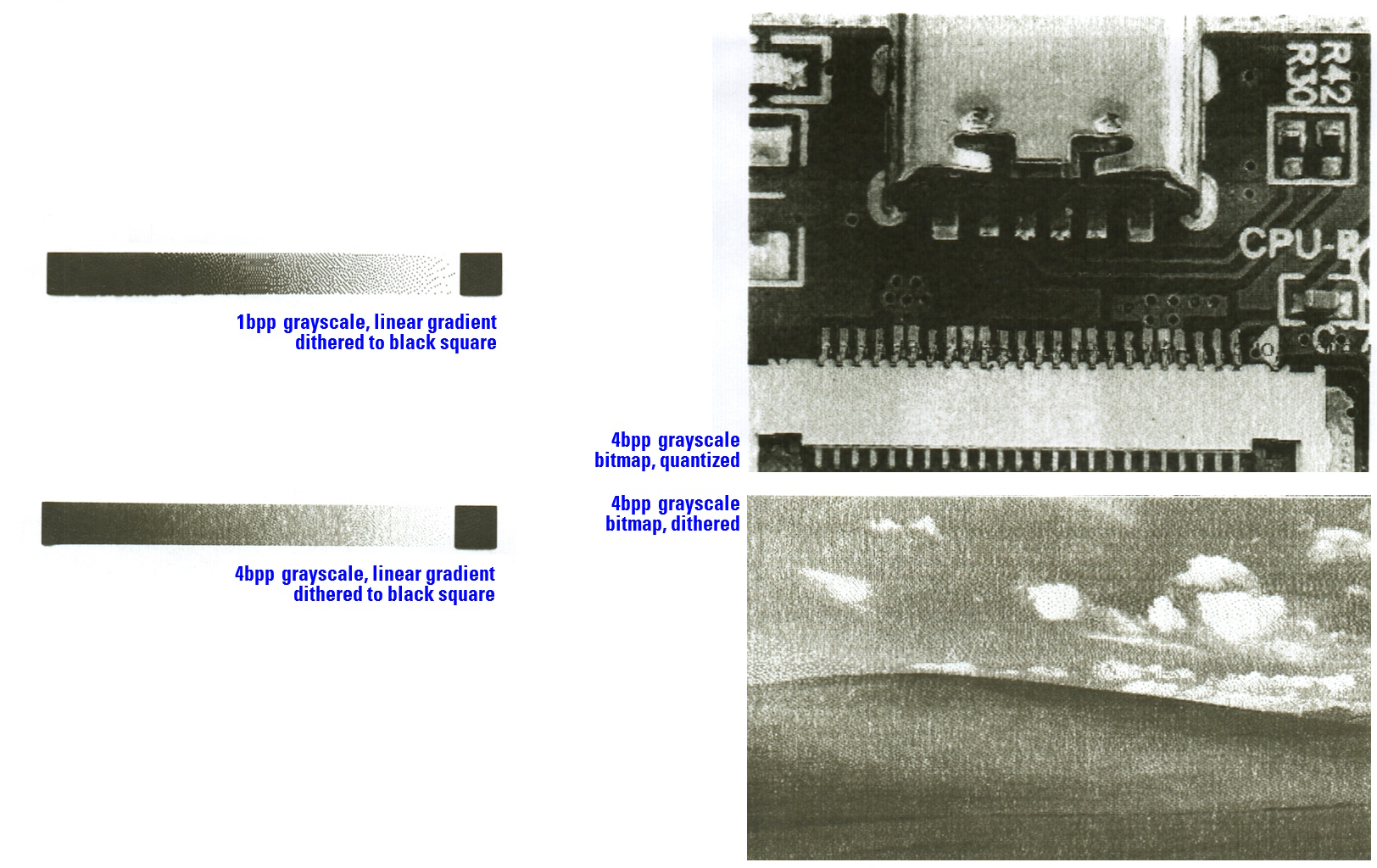

Here are two copies of the same gradient and two bitmaps printed with a C# command-line app using the information gathered here, annotated in blue. I did not gamma-correct the 4bpp prints, which is a process that depends on the print speed, thermal head energy, paper characteristics, etc. and is generally too fiddly to worry about.

Looks great!

(1200 DPI scan, scaled to ~30%)

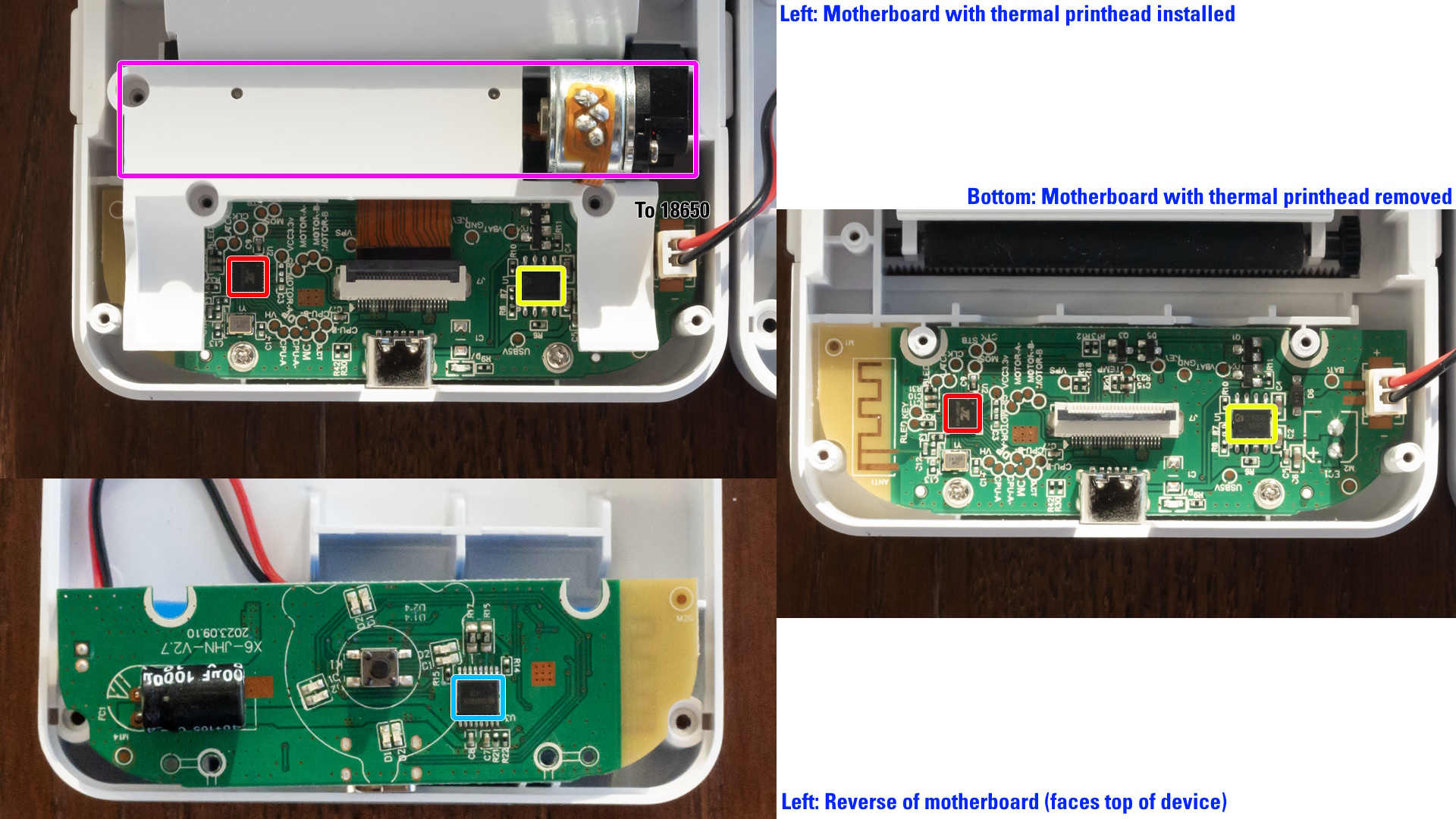

Hardware

• Zhuhai Jieli AC6956C microcontroller (datasheet, archive.org backup)
• 4056-style Li-Ion battery charge controller
• 8833-style dual H-bridge as a stepper driver (Sytatek SA8833)
• Seiko LTP02-245-13 thermal printhead clone (datasheet, archive.org backup)
